TGN Lightweight Structure Cost-Effective Compact Drive Lifting Rake Scraper for Sludge and Scum Collection

Model Number : TGN Series

Main Material : Carbon Steel or Stainless Steel

Power Supply : Conductor bar systems or alternative

Brand Name : Lanjiang

Wheel Options : Rubber, nylon, or steel

Payment Terms : T/T

Structure Design : Lightweight

Place of Origin : China

Operating Modes : Troughs at Same End or Opposite Ends

MOQ : 1

Drive Type : Coupling-free transmission

Contact Now

TGN Lifting Rake Scraper with Integrated Sludge & Scum Collection Troughs
Designed for rectangular clarifiers in wastewater treatment plants (WWTPs), the TGN Series Lifting Rake Scraper efficiently sweeps settled bottom sludge into a sludge collection trough while simultaneously skimming surface scum into a scum collection trough.
Product Features
  • Lightweight Structure: Simple and lightweight design
  • Cost-Effective: Low operating expenses and easy maintenance
  • Compact Drive: Coupling-free transmission for easy alignment
  • Wheel Options: Available in rubber, nylon, or steel
Working Principle

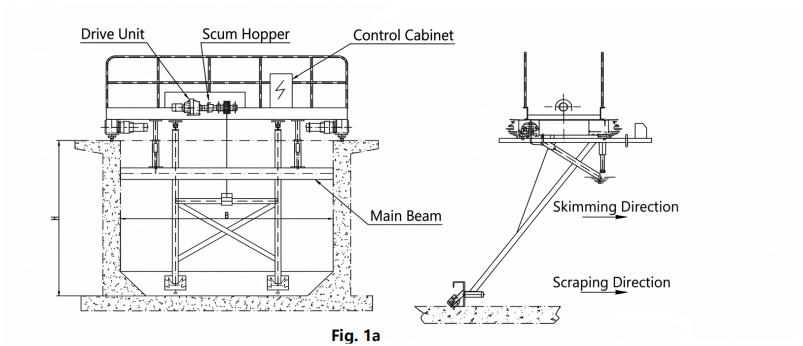

The TGN scraper consists of a traveling bridge, rakes (sludge & scum), drive unit, and control panel. Operating modes based on trough layout:
  • A. Troughs at Same End: Both rakes lower → Scrape sludge & scum forward to the end → Both rakes lift → Return to start unloaded
  • B. Troughs at Opposite Ends: Sludge rake lowers → Scrape sludge forward to the end → Sludge rake lifts & skimmer lowers → Skim scum backward to the start

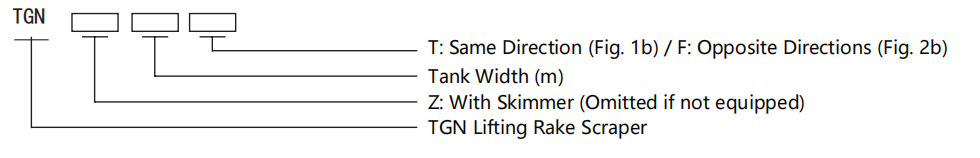

Model Designation
TGN Lightweight Structure Cost-Effective Compact Drive Lifting Rake Scraper for Sludge and Scum Collection
Main Parameters
TGN Lightweight Structure Cost-Effective Compact Drive Lifting Rake Scraper for Sludge and Scum Collection
Ordering Information
  • Custom Dimensions: Equipment can be custom-manufactured to fit specific tank dimensions
  • Freezing Environments: Please indicate if the equipment will operate in regions prone to freezing
  • Material Selection: Please specify the required main material (Carbon Steel or Stainless Steel)
  • Rail Systems: Traveling rails can be supplied upon request
  • Power Supply: Conductor bar systems or alternative power supply methods can be provided as needed
