PUR Impeller Submersible Agitator for Denitrification Process with Low Energy Consumption

Model Number : QJB Series

Frequency : 50Hz

Supply Ability : 500

Payment Terms : T/T

Flow velocity : 0.15~0.3m/s

Delivery Time : 15

Brand Name : Lanjiang

Rated voltage : 380V

MOQ : 1

Duty cycle : S1

Certification : CE

Insulation class : F

Place of Origin : China

Protection degree : IP68

Contact Now

PUR Impeller Submersible Agitator for Denitrification Process

High-performance submersible agitator designed specifically for wastewater treatment denitrification processes, featuring PUR impeller technology for superior corrosion resistance and efficiency.

Key Features & Applications
  • Applications: Ideal for aeration tanks in municipal and industrial wastewater treatment plants, providing circulation flow for nitrification, denitrification, and phosphorus removal processes
  • High Efficiency: Low motor power consumption, low operating speed, and large impeller diameter generate massive, gentle volumetric flow with wide coverage area
  • Premium Impeller: Swept-back 'banana' shaped self-cleaning blades made of PUR or FRP materials - lightweight, high-strength, and highly corrosion-resistant
  • Multi-functional: Excellent hydraulics ensure gentle yet powerful flow, perfectly combining propulsion and mixing functions

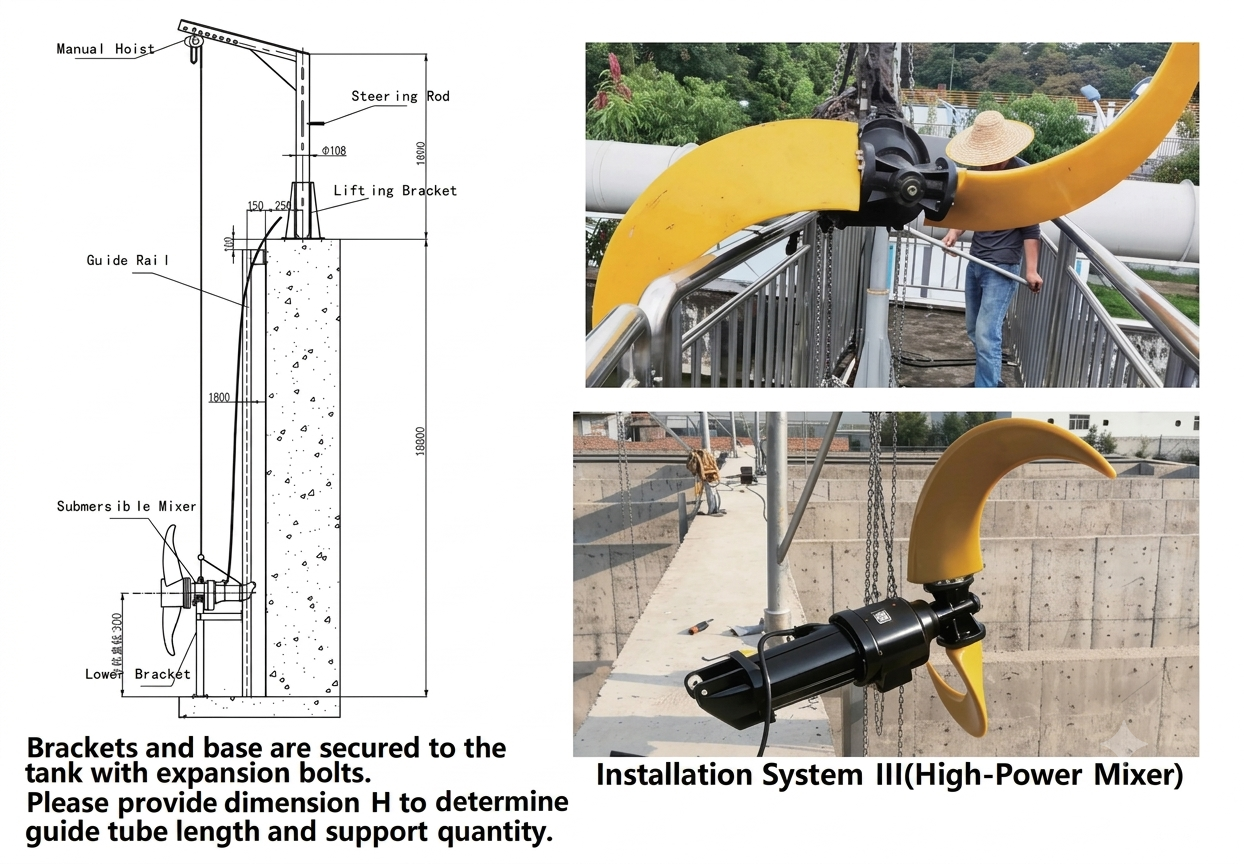

Structural Diagram of Low-Speed Flow Booster Series
PUR Impeller Submersible Agitator for Denitrification Process with Low Energy Consumption

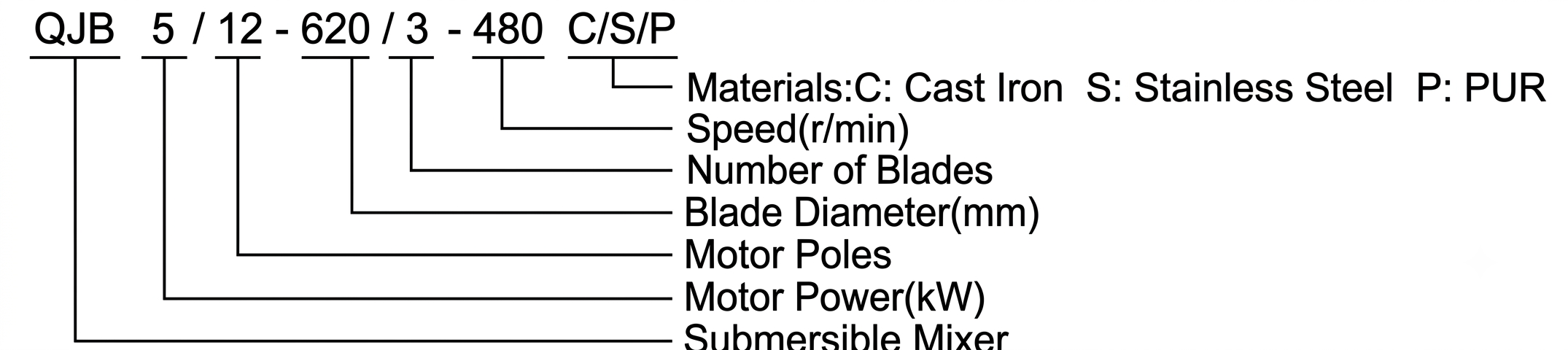

Model Designation
PUR Impeller Submersible Agitator for Denitrification Process with Low Energy Consumption
Technical Parameters

Mixer Conditions: Rated voltage 380V, frequency 50Hz, insulation class F, protection degree IP68, duty cycle S1

PUR Impeller Submersible Agitator for Denitrification Process with Low Energy Consumption
Overall Dimensions of Flow Booster
PUR Impeller Submersible Agitator for Denitrification Process with Low Energy Consumption PUR Impeller Submersible Agitator for Denitrification Process with Low Energy Consumption
Selection Guidelines

Proper selection is crucial for optimal performance, primarily determined by flow velocity within the tank. The required velocity is generally 0.15~0.3m/s:

  • Below 0.15m/s fails to create effective bulk flow
  • Above 0.3m/s disrupts biological processes and wastes energy

Selection requires confirming:

  • Applications (sewage, sludge, or biological tanks)
  • Media parameters (SS, viscosity, temperature, pH)
  • Tank geometry (shape and depth)

Motor power is determined by tank volume, liquid density, and water depth. Single or multiple mixers can be deployed as required.

PUR Impeller Submersible Agitator for Denitrification Process with Low Energy ConsumptionPUR Impeller Submersible Agitator for Denitrification Process with Low Energy ConsumptionPUR Impeller Submersible Agitator for Denitrification Process with Low Energy Consumption
