High Efficiency Energy Saving Frame Agitator for Superior Mixing in Sewage Flocculation Dosing

Model Number : JBK Series

Speed range : 10-70 r/min

Brand Name : Lanjiang

Impeller diameter ratio : 0.7-0.95

Delivery Time : 15

Supply Ability : 500

Mixing type : Anchor-Frame mixers

Payment Terms : T/T

Main shaft support : bearings

Place of Origin : China

Construction components : motor, reducer, frame, shaft, impeller blades, coupling, submerged support

MOQ : 1

Drive system : cycloidal reducers

Contact Now

High-Efficiency Chemical Dissolving Frame Agitator in Sewage Flocculation Dosing
Product Overview
A reinforced variation of paddle mixers featuring robust construction and high handling capacity. The minimal wall clearance enhances heat transfer, making it ideal for high-viscosity fluids, concentrated slurries, and chemical dissolving in water/wastewater treatment.
Precise selection based on media properties and process goals significantly improves reaction speed and efficiency. Typically used for pasty material mixing and flocculation dosing.
Rugged design with high mixing volume. Models matching the tank bottom profile are termed 'Anchor Mixers'. Impeller-to-tank diameter ratio: 0.7-0.95; Speed: 10-70 r/min. Small clearance optimizes heat transfer. High speeds strip static layers from walls, while low speeds with scrapers ensure superior performance. Collectively known as 'Anchor-Frame' mixers, their contours closely fit the tank wall to eliminate dead zones. Customizable with vertical/horizontal beams for enhanced rigidity and expanded mixing range for high-viscosity media.
Construction Overview
The JBK Frame Mixer consists of a motor, reducer, frame, shaft, impeller blades, coupling, and submerged support. The drive system utilizes standard or explosion-proof motors with cycloidal reducers. The main shaft is coupled to the mixing shaft and supported by bearings, ensuring high structural strength and superior operational stability.
High Efficiency Energy Saving Frame Agitator for Superior Mixing in Sewage Flocculation Dosing
Product Application
Widely used for chemical dissolution and mixing in water and wastewater treatment. In the flocculation stage, it promotes particle collision and adsorption to form stable flocs, ensuring high-efficiency removal in sedimentation tanks.
Product Features
  • High Efficiency: Simplified transmission with high mechanical efficiency; compact design ensures stable operation
  • Energy Saving: Small footprint with high processing capacity and low power consumption
  • Low Cost: Minimal expenses for installation, operation, and maintenance
  • Superior Mixing: Achieves rapid, uniform blending with low head loss; highly adaptable to varying flow rates
Model Designation
High Efficiency Energy Saving Frame Agitator for Superior Mixing in Sewage Flocculation Dosing

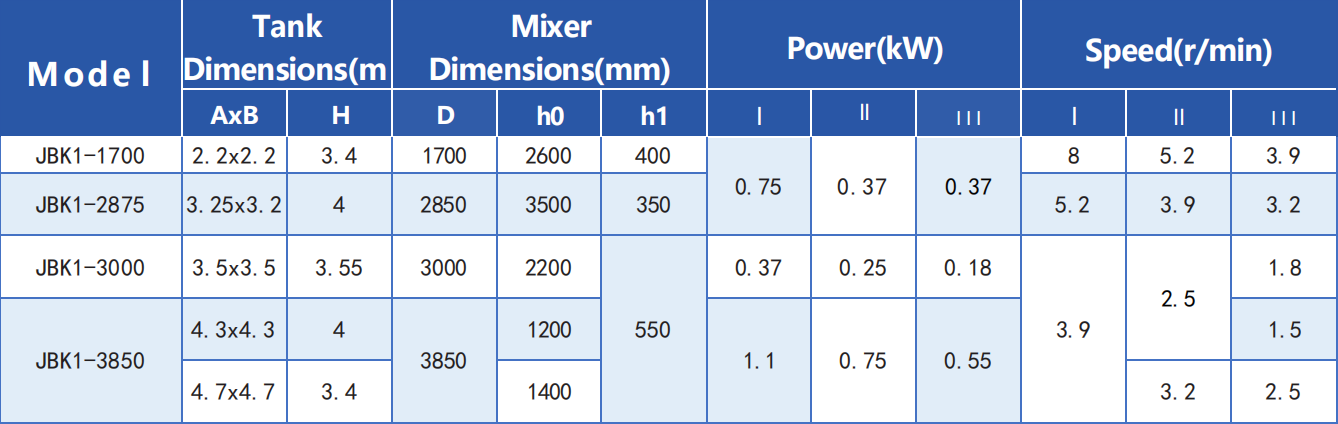

Performance Parameters
High Efficiency Energy Saving Frame Agitator for Superior Mixing in Sewage Flocculation Dosing
High Efficiency Energy Saving Frame Agitator for Superior Mixing in Sewage Flocculation DosingHigh Efficiency Energy Saving Frame Agitator for Superior Mixing in Sewage Flocculation Dosing
