Non-Separation Solid-Liquid-Gas Submersible Agitator in Biochemical Processes
Product Overview
QJB Series Submersible Mixers consist of two main categories: Mixing and Agitating, and Low-Speed Flow Booster.
Mixing Series: A key component in wastewater treatment used for liquids containing suspended solids. It ensures the homogenization of solid-liquid or solid-liquid-gas mixtures during biochemical processes. The unit integrates a submersible motor, gearbox, impeller, and installation system.
Applications & Operating Limits
- Medium temperature: Maximum 40°C
- pH range: 5-9
- Maximum liquid density: 1150 kg/m³
- Maximum immersion depth: 20 m
Product Features
- Compact & Durable: Compact design, easy installation and maintenance, ensuring long service life
- High Efficiency & Self-Cleaning: Optimized hydraulic design for superior efficiency. Swept-back blades offer self-cleaning function to prevent wrapping and clogging
- Energy Saving: Synergizes with aeration systems to significantly reduce energy consumption, boost oxygen transfer rate, and prevent sludge sedimentation
- Reliable Motor: IP68 protection, Class F insulation, and premium NSK/SKF bearings. Built-in thermal protection (anti-condensation heater optional) guarantees reliable operation
- Premium Sealing: Double mechanical seals (Tungsten Carbide) combined with FKM (Fluororubber) materials
Working Principle
The motor drives the impeller to create a swirling jet (for shear mixing) and an axial flow (for propulsion). This combination generates a massive volumetric flow, effectively maintaining the required fluid velocity and process flow field.
Mixing Series features a direct-drive, multi-pole motor. It is compact, highly efficient, energy-saving, and easy to maintain. Precision-crafted impellers deliver powerful thrust, making it ideal for solid-liquid mixing and blending.
Structural Diagram
Model Designation
Technical Parameters
Mixer conditions: Rated voltage 380V, frequency 50Hz, insulation class F, protection degree IP68, duty cycle S1.

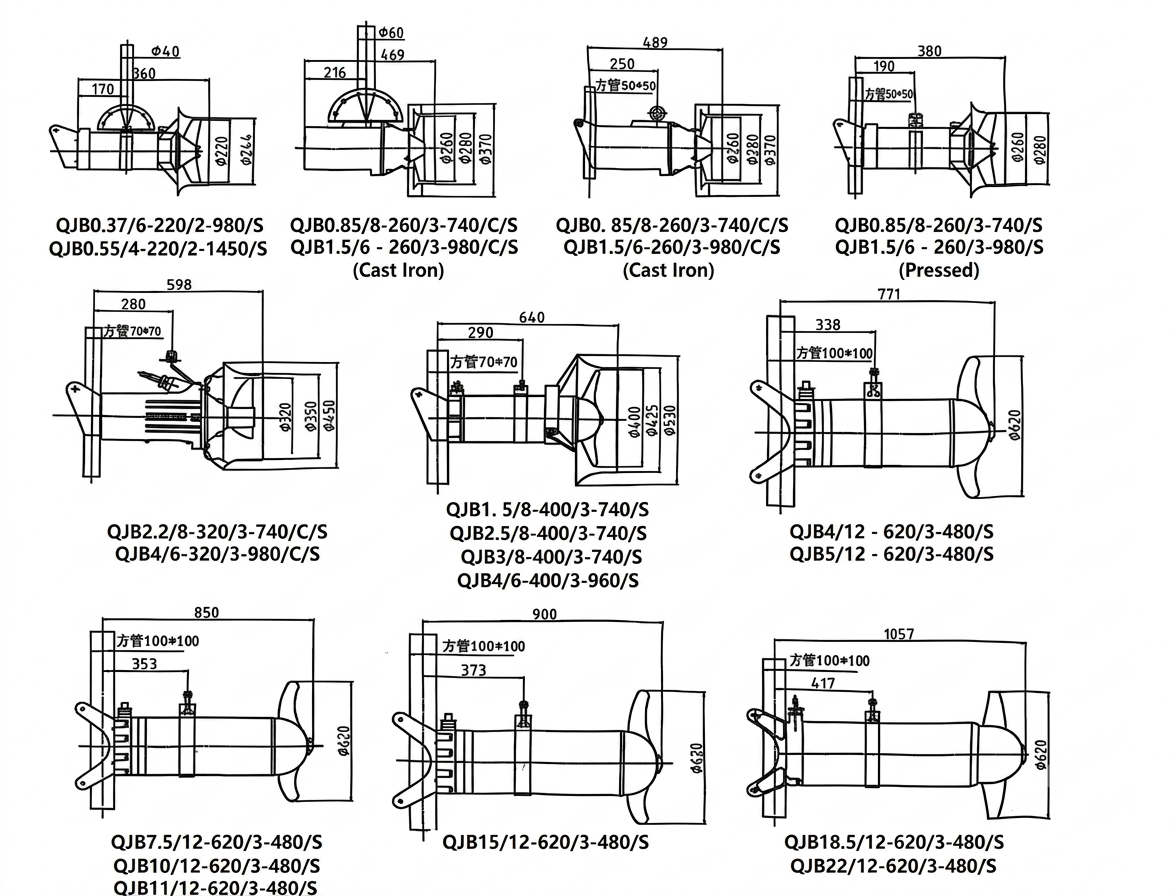

Overall Dimensions
Selection Guidelines
Proper selection is crucial for optimal performance, primarily determined by flow velocity within the tank. The required velocity is generally 0.15~0.3 m/s:
- < 0.15 m/s fails to create effective bulk flow
- > 0.3 m/s disrupts biological processes and wastes energy
Selection requires confirming: applications (sewage, sludge, or biological tanks), media parameters (SS, viscosity, temperature, pH), and tank geometry (shape and depth). Motor power is determined by tank volume, liquid density, and water depth. Single or multiple mixers can be deployed as required.
Operating Conditions
Unlike traditional shaft mixers, QJB mixers offer flexible positioning. Adjusting the location creates varied flow patterns to completely eliminate dead zones. Power is sized based on tank volume, media density, and depth (single/multiple units).
See typical efficient layouts below:
