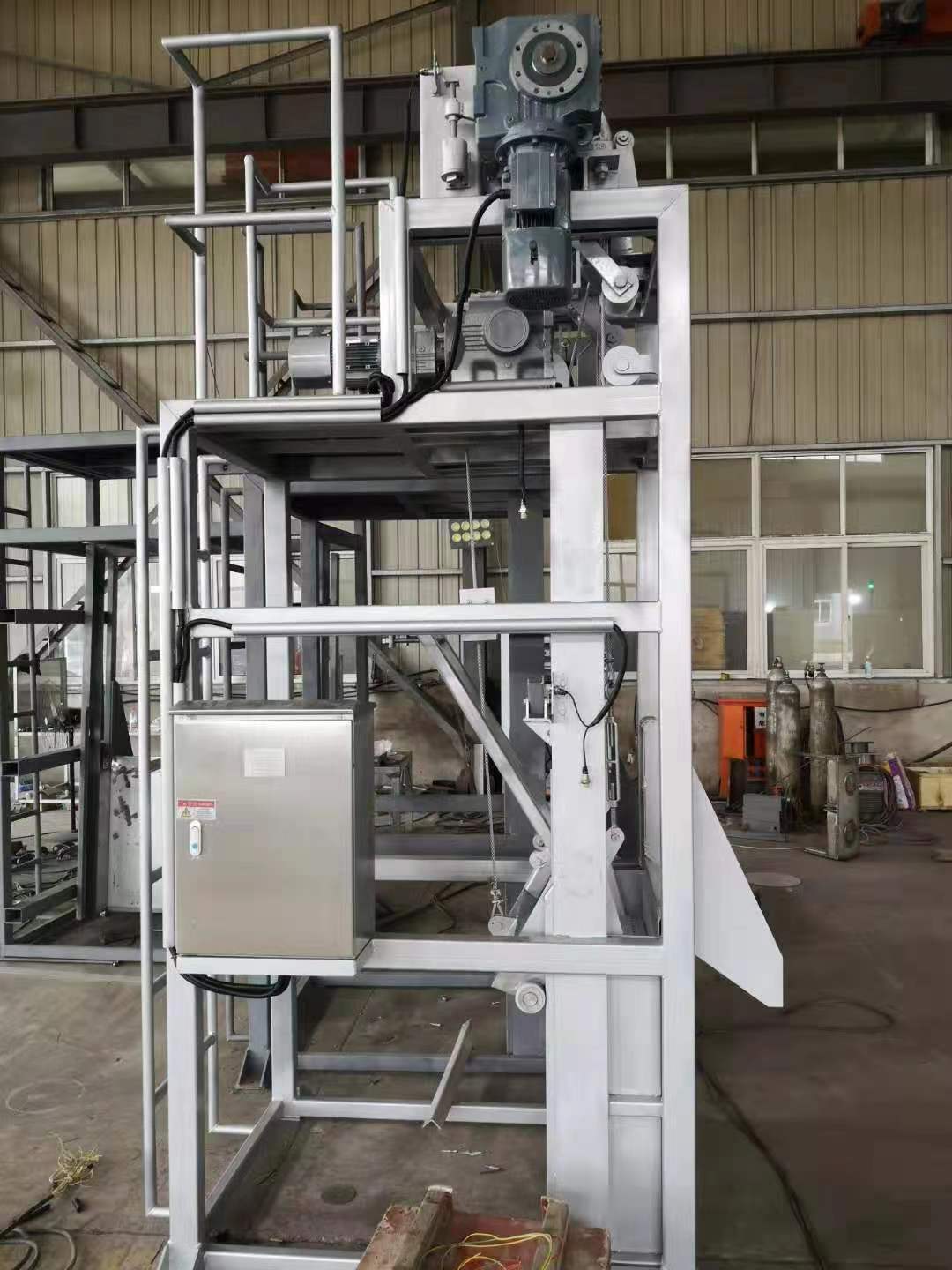

Cable-operated mechanical bar screen with forced closing force, corrosion resistant design, and overload protection for heavy debris interception

Engineered for municipal plants and large pumping stations, the wire rope traction bar screen features a high-capacity rake and powerful traction system. It efficiently intercepts bulky debris including heavy wood and branches, actively protecting downstream pumps from mechanical damage. This represents the ultimate heavy-duty screening solution for large-scale water intakes.

The equipment frame mounts above the channel, utilizing fixed bars to intercept debris. During the operational cycle:

• A tilting motor opens the rake bucket to a specified angle
• The hoisting motor lowers the open rake along guide rails via wire ropes to the channel bottom
• Upon reaching the bottom, a travel limit switch stops the descent
• The tilting motor restarts to close the rake and capture debris
• The rake ascends, with its teeth clearing bar gaps and sliding up the dead plate
• At the top limit switch, an automatic wiper scrapes debris into a conveyor or collection cart

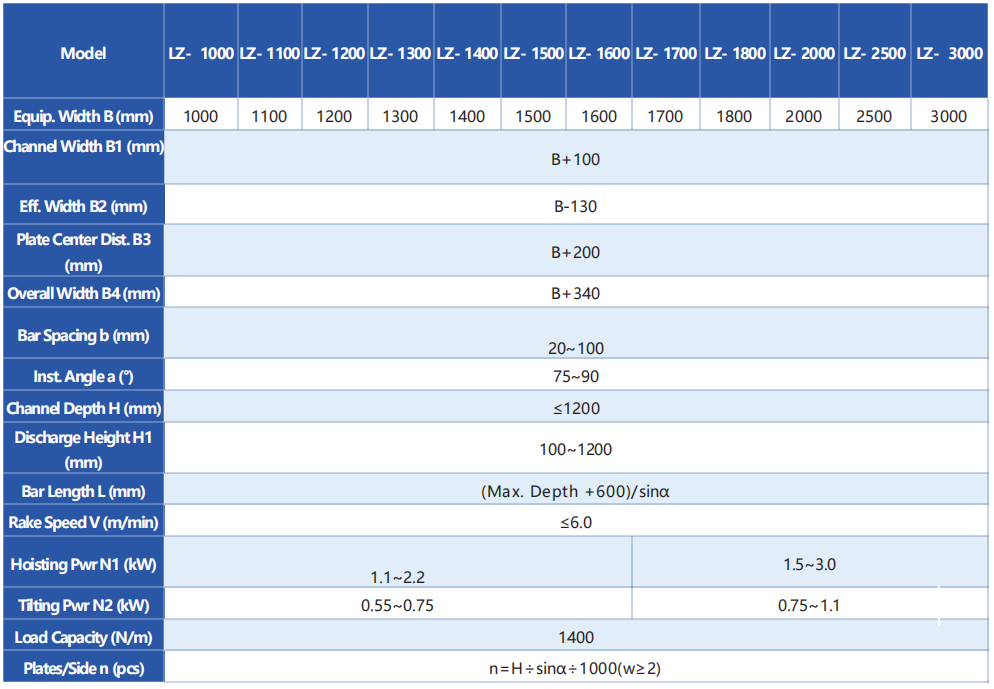

Optimized using advanced international technologies, the system comprises hoisting and tilting gear motors, wire rope drums, drive shafts, upper pulley assemblies, rake bucket, wipers, guide rails, submerged screen bars, and dead plate.
