Continuous Externally-Fed Rotary Micro Filter with 0.25mm Particle Capture and Stainless Steel Construction for Wastewater Pretreatment

The WLW externally-fed rotary micro filter provides continuous solid-liquid separation for small to medium municipal and industrial wastewater plants. By removing 30% to 60% of suspended solids, it significantly reduces downstream processing loads. Capturing particles larger than 0.25mm, this equipment is ideal for pretreatment in industries like papermaking, tanning, slaughterhouses, brewing, food processing, chemical fibers, and textiles.

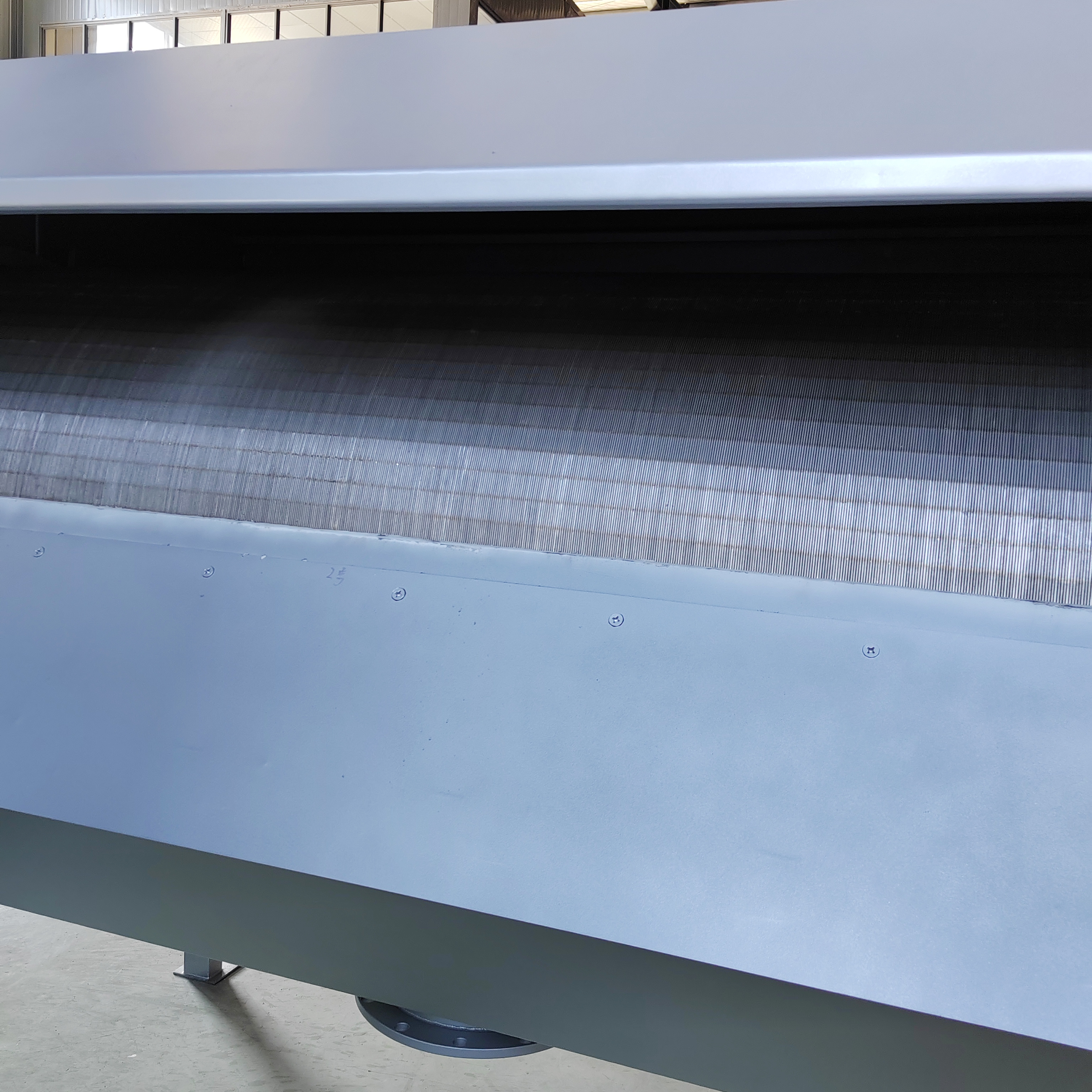

Driven by a variable speed motor, the drum intercepts debris on its outer surface as wastewater rises from the buffered inlet tank. Filtered water passes into the drum and exits through the bottom, naturally backwashing the mesh. Intercepted solids and fibers are rotated to the opposite side and removed into a hopper by a scraper. Notably, the moisture content of the discharged waste is 5% to 30% lower than conventional internally-fed models. The clean effluent is then routed to the outlet tank for final discharge.

• Easy, Trenchless Installation: Compact, all-stainless-steel construction ensures maximum corrosion resistance. Mounts directly with expansion bolts—no civil trenches required. Pipe-ready inlet and outlet.
• Clog-Free Profile: Inverted trapezoidal (wedge wire) bars actively prevent mesh clogging.
• Smart Speed Control: Variable speed motor automatically adapts to inlet flow for optimal efficiency.
• Dual Self-Cleaning: Combines an external surface brush with a secondary internal flushing system to thoroughly eliminate trapped debris.
