High Capture Rate Center Flow Band Screen with Space-Saving Design and Zero Carry-Over for Municipal Wastewater Treatment

Model Number : NJL Series

Installation type : Vertical

Delivery Time : 15

Supply Ability : 500

Flushing system : Pressurized automatic

Brand Name : Lanjiang

Flow pattern : Center-in, side-out

Payment Terms : T/T

Drive mechanism : Traction chain

Place of Origin : China

Debris capture : Zero carry-over

MOQ : 1

Maintenance design : Modular slide-in panels

Contact Now

High-efficiency Center Flow Band Screen for Municipal Wastewater Treatment
Product Overview

The center flow perforated plate screen delivers highly efficient secondary screening to remove fine suspended and granular debris. Its compact, space-saving design ensures easy installation and user-friendly operation.

Engineered for maximum durability, the system features zero underwater transmission parts, significantly extending service life and preventing submerged mechanical failures.

Working Principle

The center flow perforated plate screen consists of a drive unit, main frame, stepped perforated panels, and a flushing system. Installed centrally in the channel, wastewater enters through a front opening and flows outward through the side-mounted panels, while baffles prevent any hydraulic bypass.

As the motor drives the traction chain, the panels continuously lift intercepted debris from bottom to top. A pressurized flushing system then automatically discharges the waste into a central trough for gravity removal. This unique "center-in, side-out" flow pattern ensures complete debris interception with strictly zero carry-over downstream.

Featuring an advanced self-cleaning design, the system completely eliminates debris tangling, mechanical jamming, and bottom dead zones, achieving optimal pretreatment efficiency.

Product Features
  • High Capture Rate: Unique flow pattern efficiently intercepts fine debris
  • Maximized Flow: Single-pass screen design boosts throughput and lowers head loss
  • Space-Saving Design: Vertical installation minimizes the required footprint
  • Easy Maintenance: Modular slide-in panels allow for rapid replacement
  • Seamless Retrofits: Drop-in installation requires zero civil modifications
  • Zero Carry-Over: Completely prevents downstream debris escape for optimal pretreatment
Technical Parameters
High Capture Rate Center Flow Band Screen with Space-Saving Design and Zero Carry-Over for Municipal Wastewater Treatment

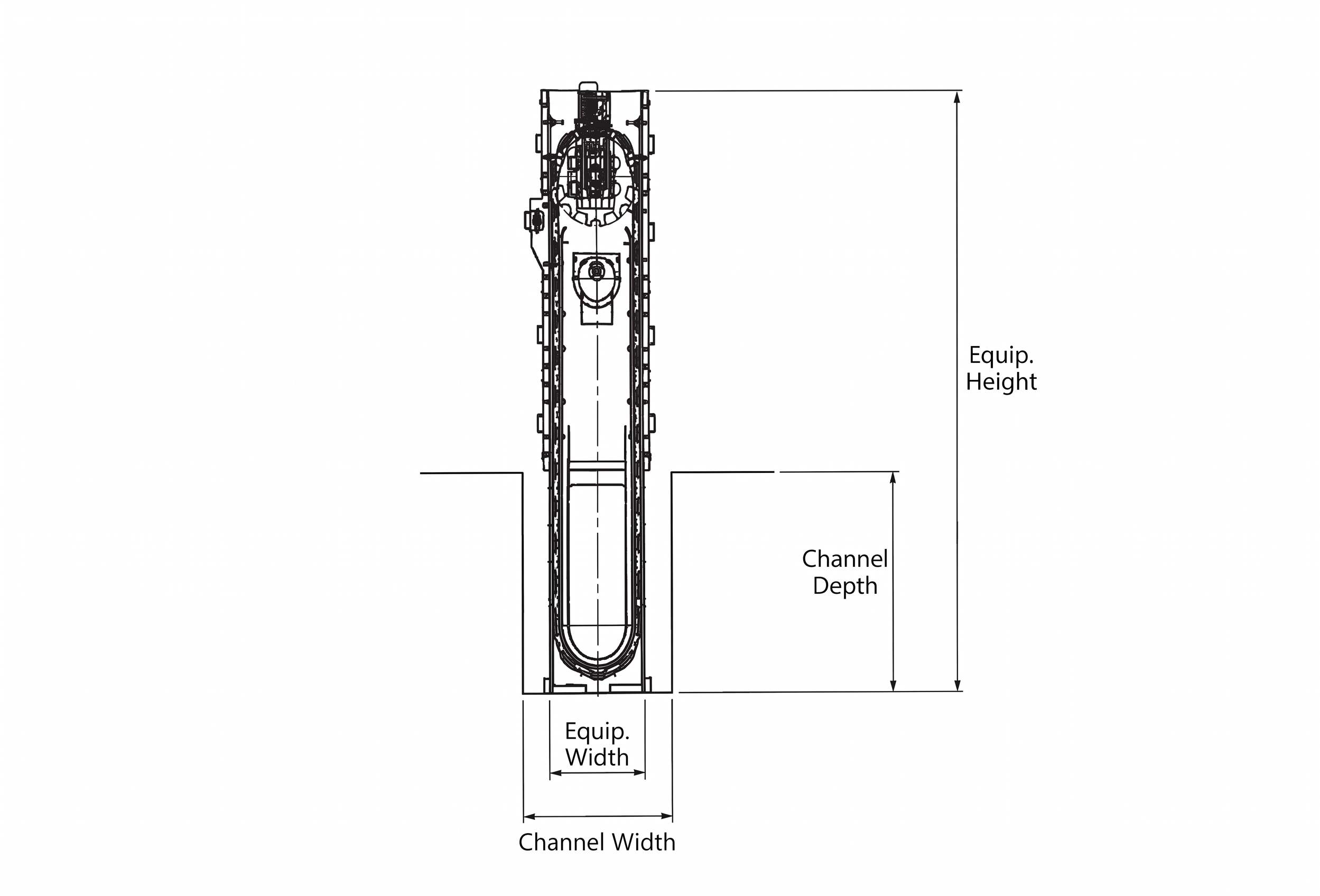

Technical Drawings
High Capture Rate Center Flow Band Screen with Space-Saving Design and Zero Carry-Over for Municipal Wastewater Treatment
High Capture Rate Center Flow Band Screen with Space-Saving Design and Zero Carry-Over for Municipal Wastewater Treatment
High Capture Rate Center Flow Band Screen with Space-Saving Design and Zero Carry-Over for Municipal Wastewater Treatment
High Capture Rate Center Flow Band Screen with Space-Saving Design and Zero Carry-Over for Municipal Wastewater Treatment
