Durable Guide Rail Basket Screen for Deep Well Wastewater Intake Screening
Product Overview
The basket screen is a wastewater filtration device available in manual and automatic models. Its components include guide rails, a screen basket, a support frame, a temporary screen, and a hoisting motor. This system effectively separates suspended solids from liquids and is constructed primarily of stainless steel with fully customizable dimensions.
Working Principle

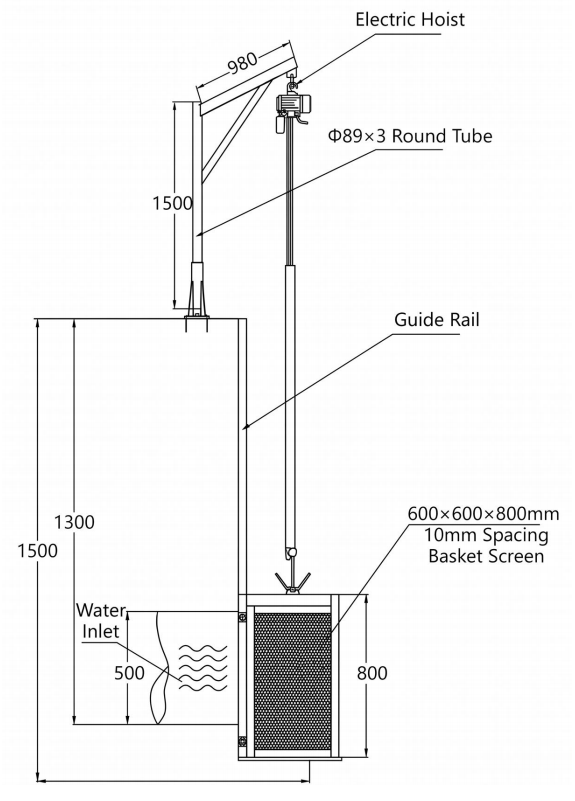

The automatic basket screen includes guide rails, a main basket, a lower limit rod, a temporary screen, and a hoisting motor. The synchronized operation of these components ensures continuous automated filtration, saving labor resources and overcoming traditional clogging issues.
For equipment selection, first determine the design hourly flow rate and choose a matching model from the catalog. The selected model's dimensions will then dictate the screen channel design.
Application Benefits
The screen channel is a crucial wastewater structure that actively intercepts debris to protect pumps, prevent pipeline blockages, and reduce the initial pollutant load.
Removing visible debris is vital for pretreatment. Traditional fixed screens are difficult to clean and prone to causing deep underground blockages, while manual basket screens leave the intake unprotected during lifting. Our automated system resolves these issues, making it especially ideal for small plants lacking operational staff.
Product Features
- The main screen features welded inverted trapezoidal (wedge wire) stainless steel bars, ensuring excellent flow capacity, high corrosion resistance, and easy, clog-free cleaning
- With a simple, power-free design, it is easily installed to remove fine, non-sticky fibrous and granular suspended solids. Highly effective for brewery wastewater treatment
- Constructed entirely of stainless steel, it requires no power source, resulting in zero operating costs
Design Features

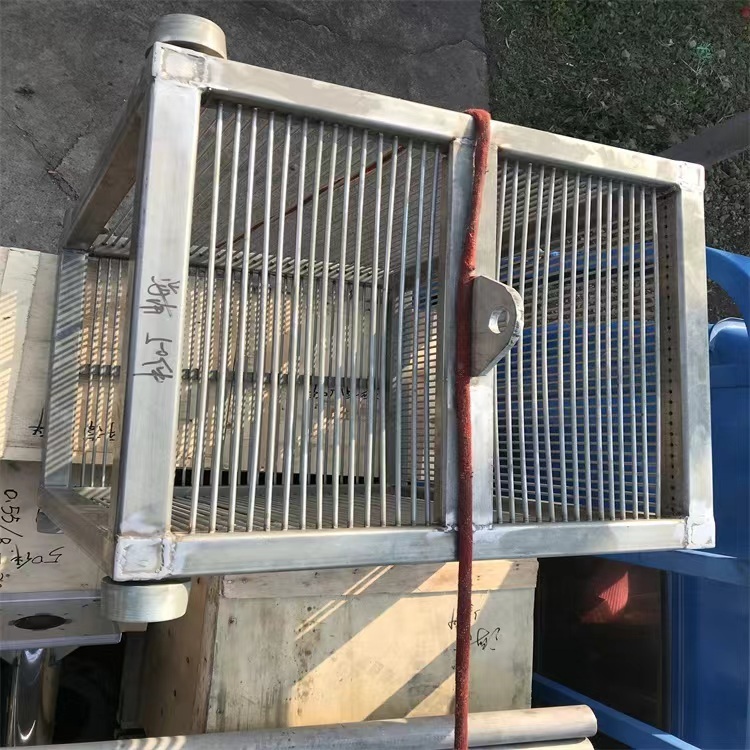

The basket screen comprises a main frame and handles. The frame is an open rectangular box with a square bottom, reinforced externally on both the base and side walls. The bottom features evenly distributed circular or rectangular perforation holes, while the side walls contain uniform square mesh grids.
Two handles are fixed or pivotally attached to opposite sides; when fixed, they extend upward flush with the side walls. This inspection well basket screen delivers a simple structure, easy installation, low cost, excellent corrosion resistance, efficient filtration, and full reusability.
